Features:

• Analog front end with input   amplifier and anti aliasing filter

• 12 bit, 4 channel ADC

• Blackfin DSP from Analog   Devices with up to 1000 MIPS

• 16 Mbyte SDRAM memory

• 4+1 Mbyte FLASH memory

• TCXO oscillator
   (1ppm accuracy)

• Temperature sensor

• Unique hardware serial number

• Small dimensions: 100 x 25 mm

Interfaces:

• JTAG (for processor emulator)

• Asynchronous serial port

• Synchronous serial port

• SPI

• I2C (software implemented)

• Timer input

• General digital I/O

• Analog inputs
     Ch1, via input amplifier
     Ch2, for internal use
     Ch3, directly to ADC
     Ch4, directly to ADC

Available drivers for on board hardware:
(delivered as source code,
  c- and h-files)

• SDRAM driver
• FLASH driver
• UART driver
• ADC driver
• I2C driver
• SPI driver

DSP-003

DSP-003 is a complete data acquisition and signal processing module with a very compact form factor.
It's small size, high processing speed and and low power consumption makes it an ideal choice when space, performance and power are issues.
DSP-003 is easily integrated into your product, you just have to provide power supply and an asynchronous serial port for communication.

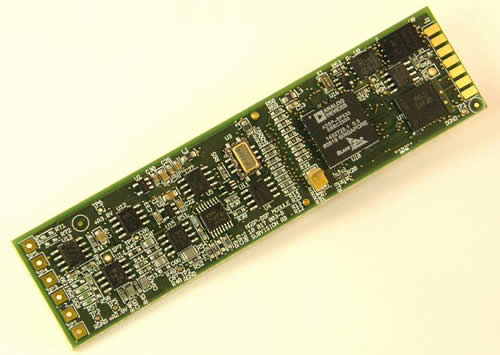

dsp_board

Board interface:

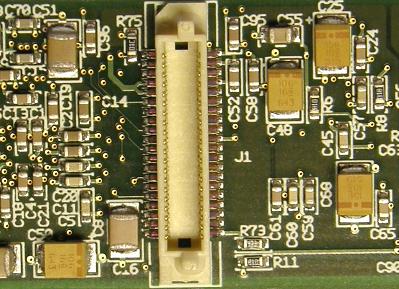

A 40 pole HIROSE connector, contains power and most interface pins.
Code development is most easily done with Analog Devices VisualDSP development software. Analog Devices also have a number of emulators that connects to the DSP-003 JTAG connector. On board FLASH memories can be used for boot code and secondary code storage.
Brief Technical Data
Digital Signal Processor Analog Devices Blackfin ADSP-533
SDRAM memory 16 MByte, 125MHz
FLASH memory
   Boot code 1 MByte
   Secondary software and non    volatile parameters 4 MByte
A/D converter 12 bit, 4 channel, sampling frequency up to 500kHz
Oscillator TCXO, 1ppm accuracy, 1ppm/°C temp stability
Temperature sensor ±0.5°C accuracy from -10°C to +85°C
Hardware serial number 64 bit unique code
Analog front end
   Input amplifier Differential, total gain 34.5dB
   Low pass filter 4th order Bessel, f_3dB = 50kHz
Power supply
   Needed voltages +1.26VDC and +3.3VDC
   Pwr consumption (at 25°C) 560mW (moderate processor load)
800mW (full processor load)
Dimensions L x W x H = 100 x 25 x 9 mm
Weight 13g
